Specification
Model | FT-A6 | FT-X |
Pictures | |
|
LCD Screen Size | 5.3*3.5CM | 6*4.5CM |
Number of Counts | 6000Counts | 9999Counts |
AC Voltage | 6.000V/60.00V/600.0V | 9.999mV-750.0V |
DC Voltage | 6.000V/60.00V/600.0V | 9.999mV-999.9V |
AC DC Current | 999.9mA/9.999A | 9999μA/99.99mA 999.9mA/9.999A |
Resistance | 600Ω/6KΩ 60KΩ/600KΩ/6MΩ 60MΩ |
99.99Ω ±(1.0%+3) 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ ±(0.5%+3) 9.999MΩ ±(1.5%+3) 99.99MΩ |
Capacitance | 6nF 60nF/600nF/6μF/60μF/600μF 6mF/60mF |
9.999nF ±(5.0%+20) 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ± 9.999mF |
Frequency | 6.000Hz/60.00Hz/600.0Hz/6.000kHz/60.00kHz/600. 0kHz/6.000MHz/10.00MHz |
99.99Hz/999.9Hz/9.999kHz/99.99kHz/ 999.9kHz/5.000MHz |
Temperature | -30~1000°C(-22~1832°F) | -20~1000℃/-4℉~1832℉ |
Continuity Test | √ | √ |
Diode/on-off | √ | √ |
Non-contact Voltage Detection | √ | √ |
Backlit Display | √ | √ |
Low Battery Reminder | √ | √ |
Auto range | √ | √ |
Manual range | × | √ |
True RMS | √ | √ |
Date Hold | √ | √ |
Auto Shut-down | √ | √ |
Certification | CE | CE |
Material | ABS+TCP | ABS |
Button | Button design, direct switching with one hand | Button design, direct switching with one hand |
Battery | 1.5V AA battery * 2(included) | 1.5V AA battery * 2(included) |
Smart Mode | Automatic identification of AC and DC, resistance, on-off, zero live wire | Non-contact voltage detection, automatic identification of current gear, identification of zero live line under AC voltage |
Operation | Button design, easy to operate | Button design, easy to operate |
Product Size | Product Size:130*65*32mm Product Net Weight:130g | Product Size:145*74*35mm Product Net Weight:215g |

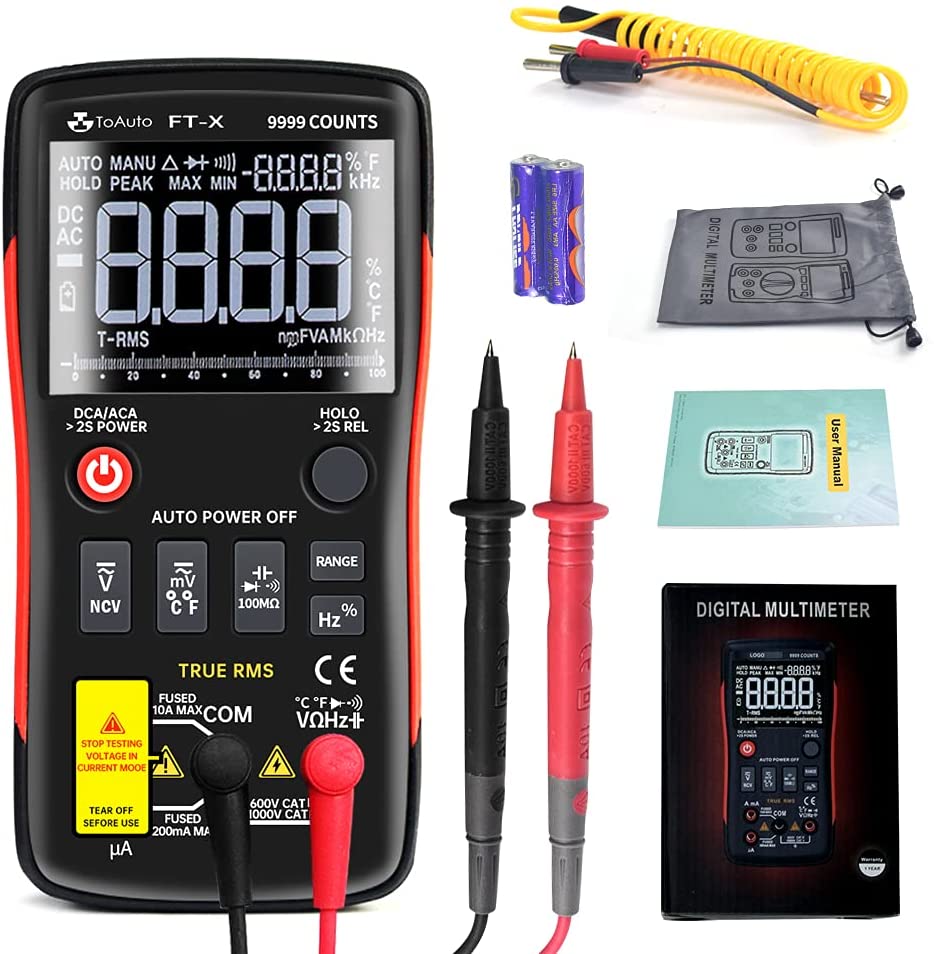

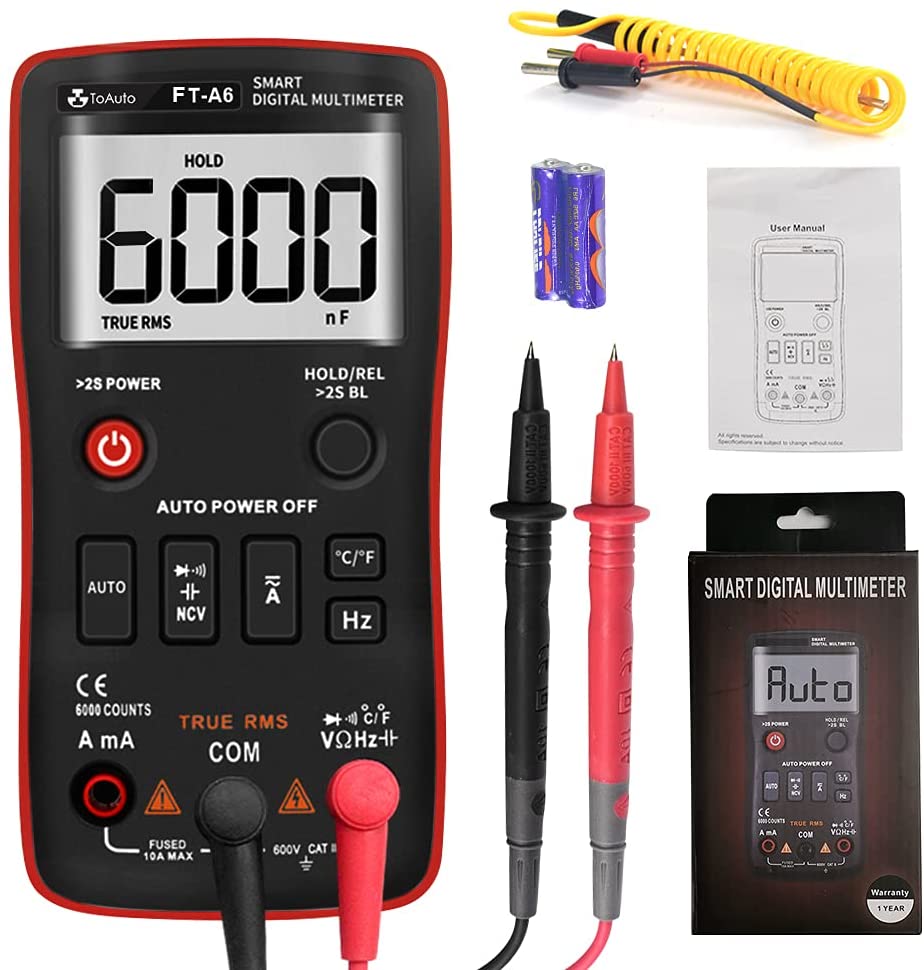

Packing Inclued | 1*FT-A6 Digital Multimeter 1*Temperature probe 1*Test lead 1*Manual |
1* FT-X Digital Multimeter 1* Temperature probe 1* Test lead 1* Protective case 1* Manual |

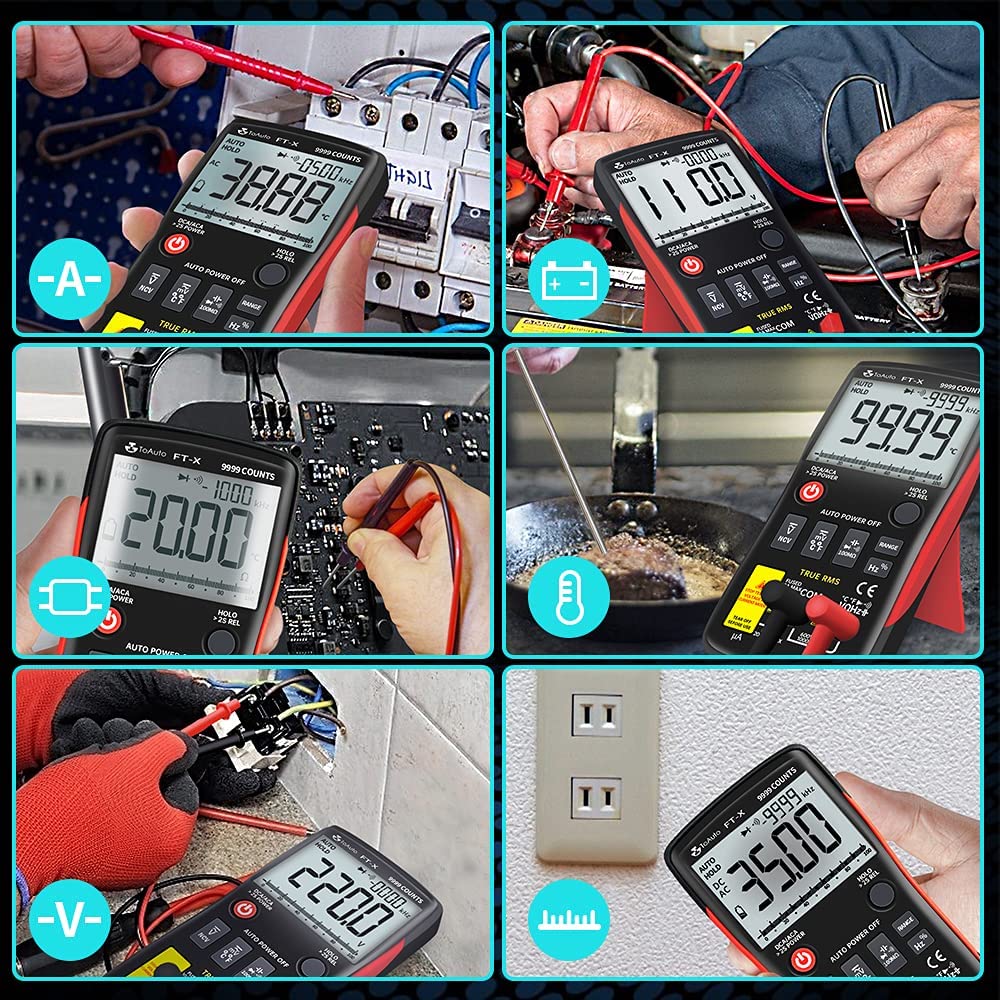

【High precision measurement】 The sampling rate is 3 times per second, which can measure AC voltage and DC voltage, AC current and DC current, resistance, capacitance, frequency and duty cycle, temperature, test continuity and diode, non-contact voltage(NCV) detection.
【Automatic Identification】Automatic identification greatly improves your test efficiency. The smart technology make this multimeter can automatically identify AC/DC voltage, Resistance and Continuity. And recording measurements easier than ever before.The attached detailed manual allows beginners to use the multimeter easily and confidently, professionals love it too!

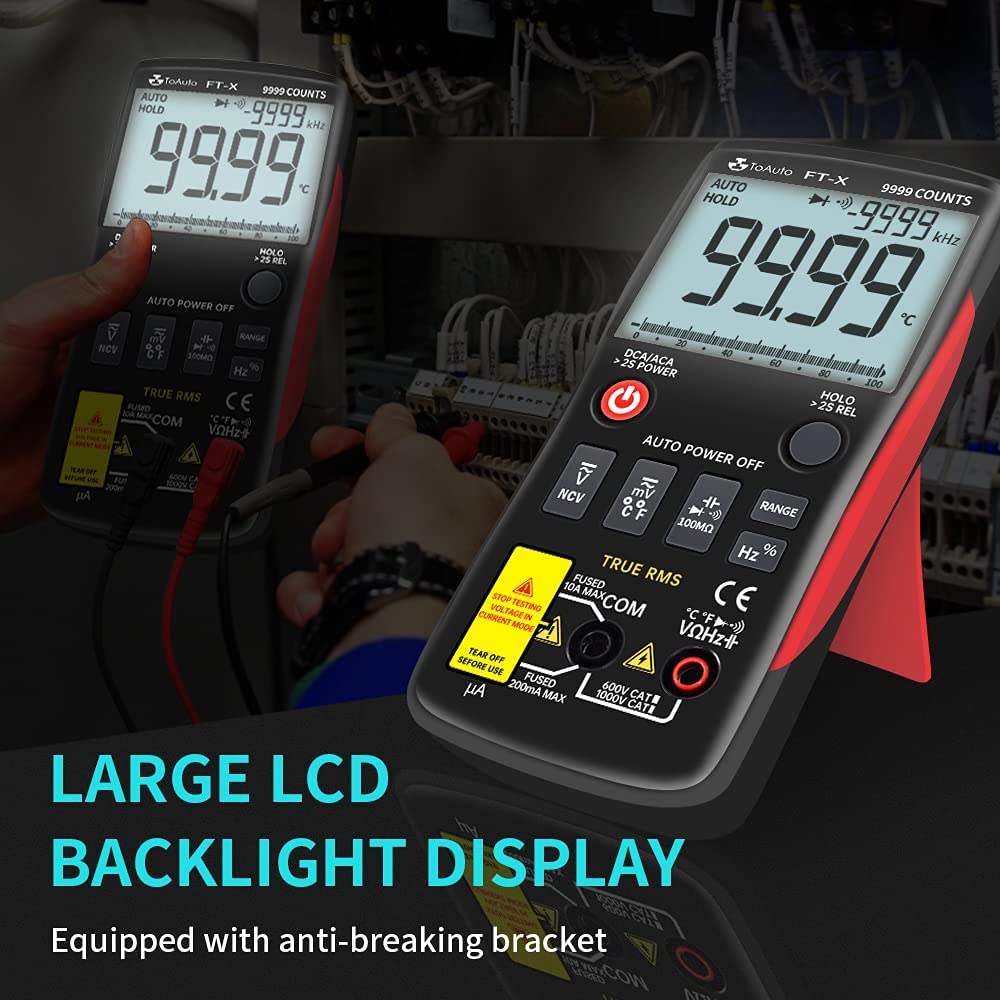

【Large LCD Display】Large LCD backlight display greatly enhance the reading experience, which make it very easy to read, even in bright sunlight or poor light.Data retention and low battery reminder function provide you with a better user experience.
【Convenient and Compact】This multimeter is as big as your phone and can be easily put in your pocket, the minimalist button design allows you to easily switch all functions with one hand. Comes with a high-quality tool bag, you don’t have to make additional purchases.
【Energy Saving Design】 If there is no function switching or operation within 5 minutes after turning on, the product will automatically auto sleep. The low battery reminder function makes it get longer battery life.
【Professional level】 FT-X can accurately measure DC voltage to 1000V, AC voltage to 750V, current to 10A, resistance to 100MΩ
【Sturdy and durable】 Use more advanced ABS+TPE material, heat-resistant, non-slip, can prevent any damage or scratches caused by accidental impact, drop.
